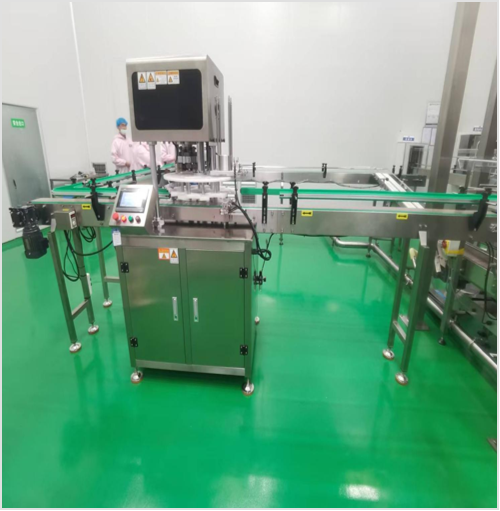

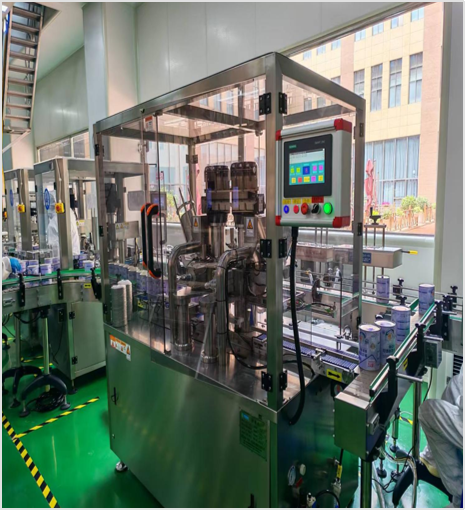

Fully Automatic High-Speed Can Sealing Machine – Main Unit for Food, Beverage & Condiment Canning Lines

The fully automatic high-speed can sealing machine main unit is typically used in conjunction with a cover feeding mechanism and conveyor line, enabling fully automated can feeding, cover placement, sealing, and discharging. The sealing speed can reach 50–60 cans per minute.

I. Core Performance

• Sealing Efficiency: Standard speed of 50–60 cans per minute – adjustable via conveyor line speed to suit different capacity requirements – supports 24-hour continuous operation.

• Sealing Strength: Double seam tensile strength ≥120N – internal pressure resistance ≥0.3MPa – meets sealing requirements for pressurized products such as canned food and beverages.

• Compatibility: Compatible with round cans of diameter 45–120mm – supports various cover types including tinplate, aluminum easy-open lids, and plastic lids.

II. Equipment Layout

Adopts a split design – the main unit and conveyor line can be flexibly separated – easy to move and adjust layout within the workshop.

III. Core Features

• Integrated Cover Feeding + Sealing: Integrates the entire process of can feeding, cover sorting, cover placement, sealing, and can discharging – no manual intervention required – reduces labor costs.

• Intelligent Detection System: Equipped with photoelectric sensors – automatically detects abnormal conditions such as missing cans, missing covers, and tilted covers – triggers a stop alarm.

• Flexible Adjustment: Can height and seaming roll position can be quickly adjusted via handwheels – changeover time <10 minutes – suitable for multi-specification, small-batch production.

IV. Core Advantages

• Strong Versatility: Compatible with various can types and materials – can cover canned food, beverages, condiments, and other product categories – high production line adaptability.

• Low Operating Barrier: User-friendly operation interface – ordinary workers can operate independently after 1 hour of training – reduces enterprise labor costs.

• Excellent Cost-Effectiveness: 40% lower procurement cost compared to imported equipment – easy availability of maintenance parts – low overall operating cost.

V. Main Applications

• Canned Food Industry: Sealing for high-temperature sterilized products such as fruit cans and meat cans.

• Beverage Industry: Sealing for carbonated beverages, functional drinks, and other aluminum cans.

• Condiment Industry: Can sealing for sauce products such as chili sauce and bean paste.
